The Portable Backpack Underwater Cable Winch is a rugged, ultra-mobile manual tether management system engineered specifically for demanding field expeditions, nearshore marine operations, and subsea inspection deployments. Featuring an innovative 3-in-1 deployment architecture (Backpack, Hand-Carry, and Ground-Mount), it eliminates the bulk, high weight, and transport constraints of conventional electric or heavy-frame winches—giving oceanographers, ROV pilots, and field engineers true single-operator mobility across rugged shorelines, coastal rocks, small boats, and mountainous terrains.
Key Engineering Highlights

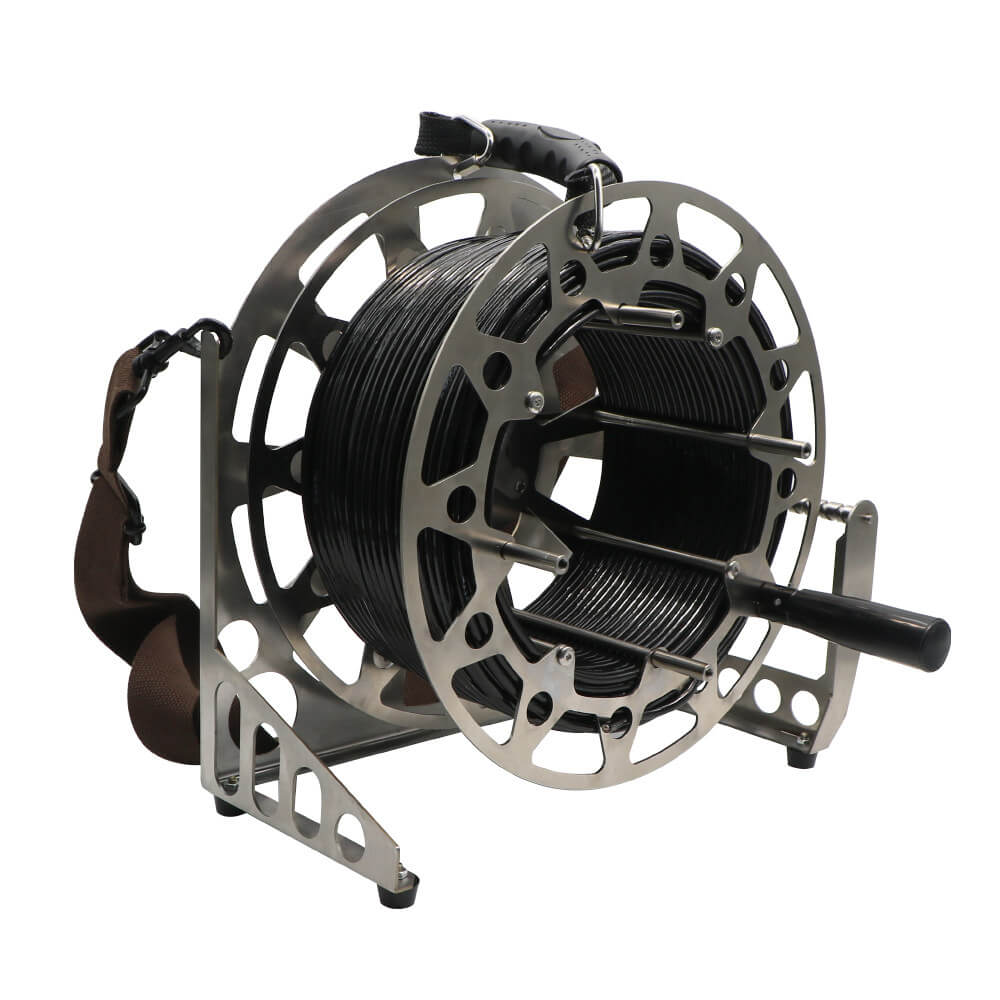

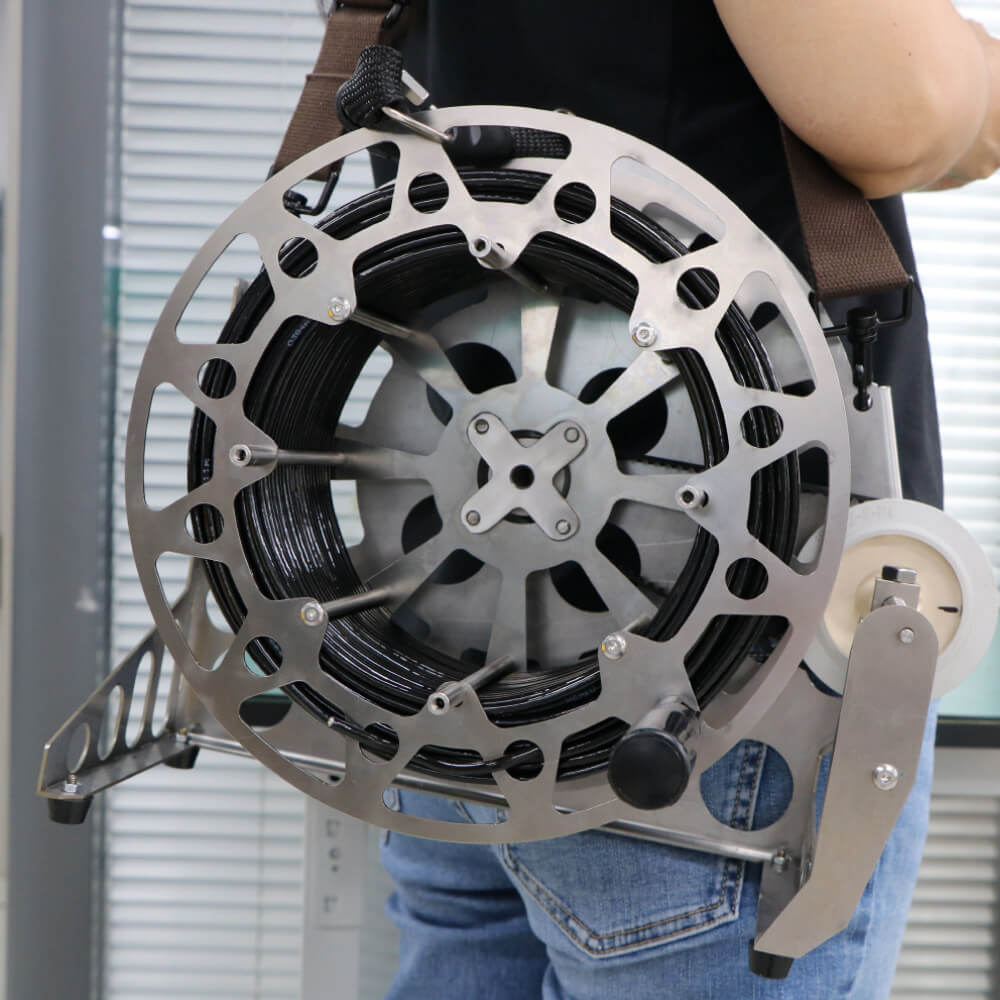

- 3-in-1 Versatile Deployment: Outfitted with heavy-duty ergonomic padded backpack straps for effortless single-person transport up slopes, over embankments, or onboard small vessels. Integrated wide-stance base feet provide solid ground stability for hands-free winding and unwinding on site.

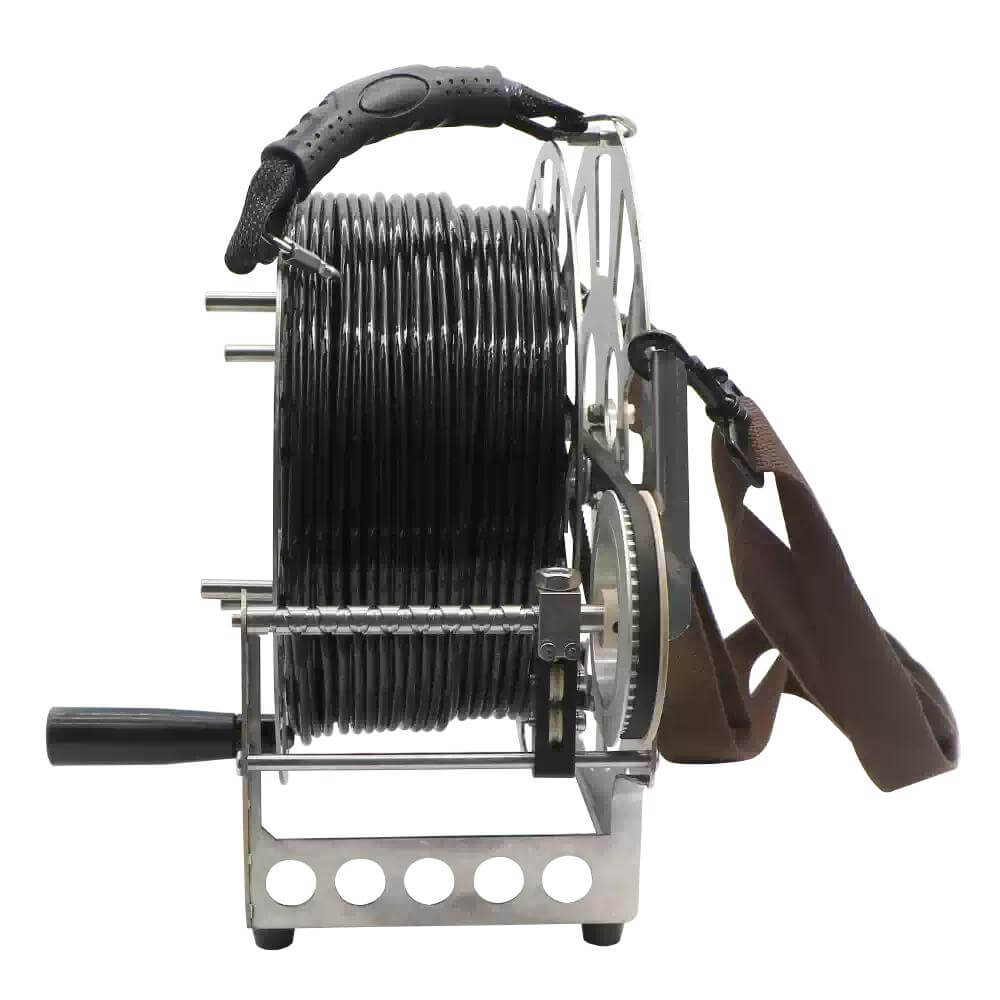

- Automatic Level-Wind Mechanism: Integrated bidirectional automatic spooling guide ensures neat, uniform cable layering during retrieval. It effectively eliminates cable crisscrossing, pinching, and sharp-bend stress, safeguarding expensive ROV neutral-buoyancy tethers and fragile subsea optical fibers.
- Instant Position Lock & Friction Brake: Equipped with a dependable mechanical brake and lock mechanism. Operators can pause payout or lock the spool at any desired depth or distance, preventing unwanted freewheeling, cable slippage, and tether runaway.
-
Marine-Grade Anti-Corrosion Configurations:
- Q235 Carbon Steel: Protective coated for inland lakes, freshwater hydrological stations, and standard outdoor fieldwork.
- 304 Stainless Steel: Enhanced corrosion resistance for damp field environments, river basins, and splash zones.
- 316L Marine Stainless Steel: Maximum resistance against saltwater pitting, ocean spray, and continuous marine atmosphere.
- Spool & Sprocket: CNC skeletonized aluminum alloy (AL) for maximum structural strength with minimal weight.
- Shafts & Fasteners: High-grade 304 or 316 stainless steel hardware throughout.

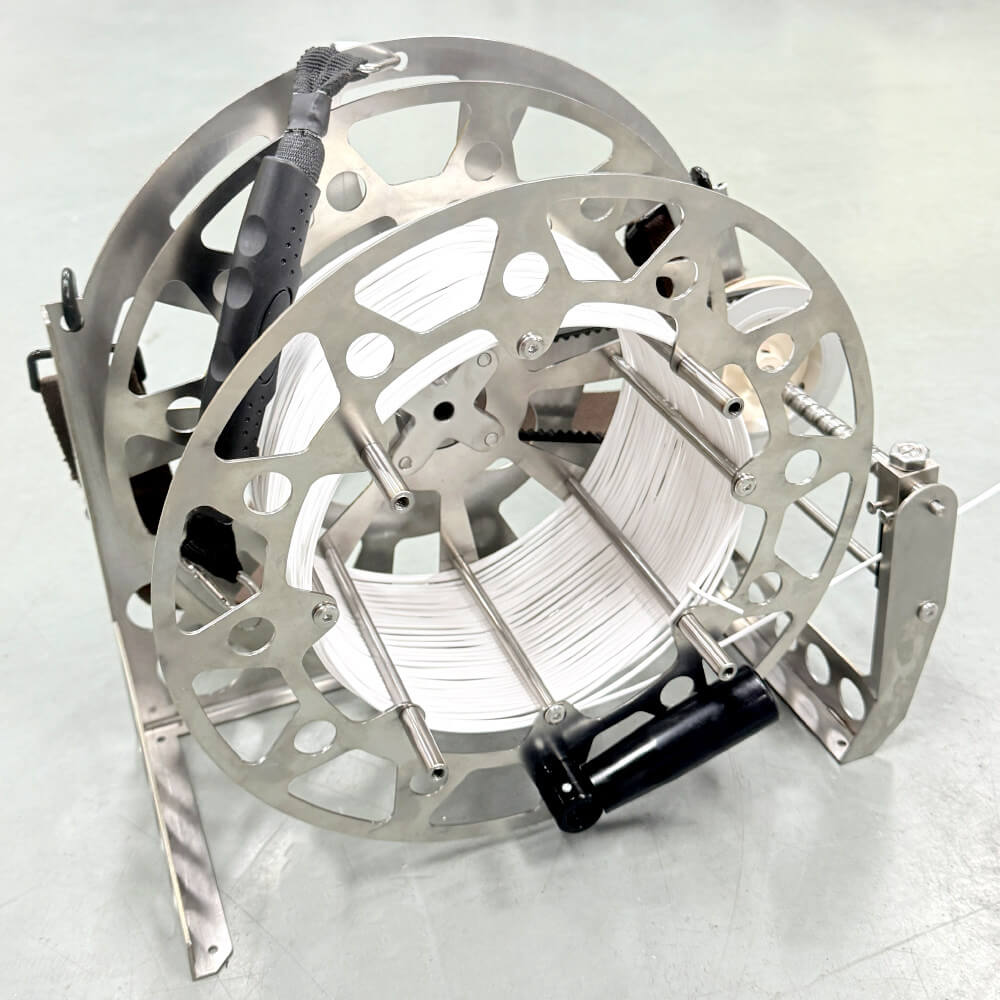

- Smooth Low-Resistance Drive & Foldable Crank: Precision low-friction sealed bearings ensure light, fatigue-free manual winding even with extended tether lengths. The folding crank handle locks securely during payout and folds flat against the frame for snag-free packing and transit.
- Modular OEM / ODM Customization: Available with custom drum diameters, core widths, slip ring integrations, and pre-terminated subsea watertight connectors to fit specific project requirements.
Typical Applications
- ROV / AUV Operations: Tether deployment and retrieval for observation-class ROVs, underwater cameras, and acoustic sensors.
- Marine & Coastal Surveys: Nearshore environmental monitoring, pier and wharf inspection, dockside water sampling, and offshore engineering.
- Hydrology & Dam Inspection: Riverbed surveying, reservoir monitoring, culvert inspection, and hydrological flow meter deployment.
- Emergency Field Communications: Rapid layout and recovery of tactical fiber-optic cables and communication lines across rugged hills and wilderness.
Technical Specifications
| Parameter | Specification |
|---|---|
| Overall Dimensions | Max Width 318 mm × Height 290 mm |
| Spool Inner Width | 173 mm |
| Net Weight | Approx. 5.0 kg (skeletonized lightweight structure) |
| Deployment Modes | Backpack (padded harness), Hand-carry (top handle), Ground-mount (stable base) |
| Spooling Guide | Automatic bidirectional level-wind mechanism |
| Brake & Lock | Mechanical friction stop & position-locking mechanism |
| Frame Material Options | Q235 Carbon Steel / 304 Stainless Steel / 316L Marine Stainless Steel |
| Drum & Sprocket Material | Skeletonized Aluminum Alloy (AL) |
| Hardware & Axles | 304 / 316 Stainless Steel |
| Crank Arm | Low-friction bearing drive with space-saving folding handle |
| Compatible Cables | ROV neutral buoyancy tethers, subsea umbilicals, fiber-optic lines, multi-core signal cables |
Technical Inquiries & Custom Specifications
YingDiGe provides comprehensive engineering support and custom winch configurations. Whether you need slip ring integration, specific core dimensions for customized tether lengths, or complete umbilical assemblies with pre-installed subsea watertight connectors, our engineering team is ready to assist.
Our Direct Process: Request Technical Quote → Confirm Specifications → Review Technical Drawings → Consult with an Engineer → Production & Delivery.
For custom inquiries, CAD drawings, or formal quotations, please contact our engineering team directly at ydg@yingdg.com or via WhatsApp at +86 190 1271 0367.
