Deep Blue Precision: Ultimate 200m Waterproof 4K Underwater PTZ
Deep Blue Precision: The Ultimate 200m Waterproof 4K PTZ Underwater Camera for Professional Exploration
The underwater world has always been a frontier of endless fascination and immense operational challenges. For marine researchers, commercial divers, aquaculture operators, and subsea engineers, obtaining clear, real-time visual data from the deep is crucial. However, the harsh marine environment demands equipment that is not just functional, but practically indestructible.

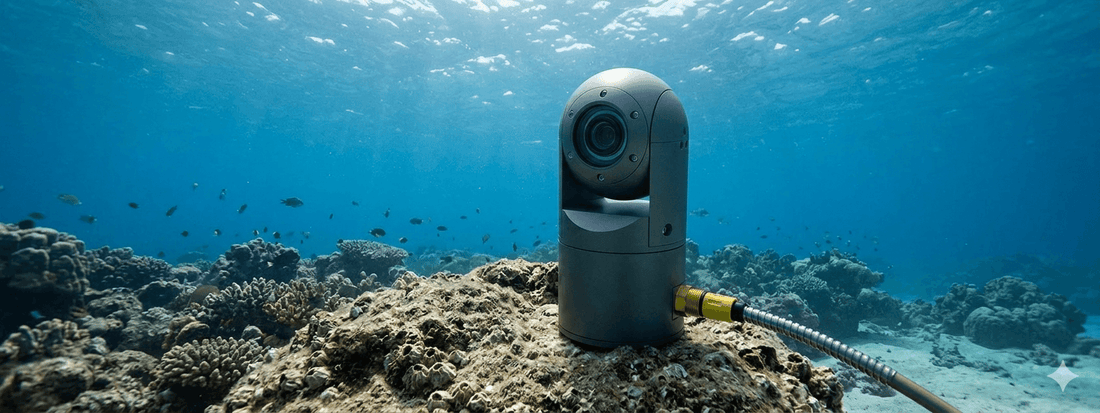

Enter the HS-YTSXJ-08-A-R-SS Underwater PTZ Camera—a masterpiece of subsea engineering designed to bring high-definition clarity to depths of up to 200 meters. Combining rugged construction with cutting-edge optical technology, this camera is built to redefine professional underwater surveillance.
1. Built for the Abyss: 316L Stainless Steel & 200M Depth Rating
Saltwater is notoriously corrosive, capable of degrading standard metals within weeks. The HS-YTSXJ-08 eliminates this risk entirely by utilizing a marine-grade 316L stainless steel chassis. Known for its exceptional resistance to pitting and crevice corrosion, 316L ensures years of maintenance-free deployment in high-salinity oceans.
Engineered to withstand immense pressure, this camera boasts a certified 200-meter (656 feet) depth rating. Whether it is monitoring deep-water fish pens, inspecting offshore oil rig foundations, or conducting benthic marine research, this camera operates flawlessly under pressure.
2. Uncompromised Visuals: 4K Ultra-HD & Low-Light Sensitivity
Darkness and turbidity are the enemy of underwater imaging. The HS-YTSXJ-08 conquers this with the advanced 1/2.7" SC8239 Blacklight CMOS Sensor. Paired with high-transmittance optical glass, it captures vibrant, ultra-sharp images even in low-light aquatic environments.
With multiple output configurations, you can tailor the feed to your network bandwidth:
Main Stream (Ultra-HD): 8MP (3840×2160) @ 15fps or 5MP @ 25fps for crystal-clear detail recording.
Sub-Stream (Smooth Monitoring): 800×448 @ 25fps for low-latency live streaming over remote satellite or cellular networks.
3. Absolute Control: 360-Degree Panoramic View & Smart IR
Fixed cameras leave too many blind spots. The integrated Pan-Tilt-Zoom (PTZ) functionality, controlled via a responsive RS485 interface, allows operators to sweep the underwater horizon smoothly. Coupled with a 90° wide-angle lens, it provides comprehensive spatial awareness without distorting the frame.
When the sunlight fades, the Smart Auto/Manual Infrared (IR) Night Vision kicks in seamlessly. Consuming just 4.2W of power with full illumination, the camera reveals hidden details in complete darkness without scaring away marine life or draining your remote power system (DC12V/2A compatible).
4. Seamless Integration: Single-Cable Reliability
Managing multiple cables underwater is a logistical nightmare. The HS-YTSXJ-08 solves this with a specialized Micro 8-Pin Submersible Bulkhead Connector. This single heavy-duty cable handles both high-speed 10/100M self-adaptive Ethernet communication and power delivery, minimizing failure points.
Supporting industry-standard protocols including RTSP, FTP, DHCP, NTP, and UPnP, it easily integrates into existing ONVIF-compliant networks, control rooms, or marine ROVs (Remotely Operated Vehicles).
