Introduction

Subsea cable penetrators are critical sealing components in underwater systems — from observation ROVs and offshore inspection equipment to aquaculture monitoring systems. When they fail, the consequences range from equipment downtime to total system loss. This FAQ guide addresses the most common penetrator failures encountered in real-world marine engineering operations, their root causes, and proven solutions.

FAQ 1: Why is my cable penetrator leaking?

Symptoms

Water ingress into the housing, moisture on internal electronics, or visible seawater around the penetrator entry point.

Common Root Causes

  • Improper installation torque: Under-tightening leaves gaps; over-tightening can crack the seal or deform the O-ring.
  • O-ring damage: Nicks, cuts, or chemical degradation from incompatible lubricants or cleaning agents.
  • Cable diameter mismatch: Using a penetrator rated for a different cable OD results in incomplete compression of the sealing element.
  • Surface contamination: Oil, grease, or debris on the mating surface prevents a proper seal.

Solutions

  • Always follow the manufacturer's specified torque values — use a calibrated torque wrench.
  • Inspect O-rings before every deployment; replace if any deformation or surface damage is visible.
  • Verify cable OD against penetrator specifications before installation.
  • Clean all mating surfaces with isopropyl alcohol before assembly.

FAQ 2: Why did my penetrator fail at depth despite passing a surface test?

Symptoms

System passes bench testing at 1 atm but leaks or fails at operational depth.

Common Root Causes

  • Hydrostatic pressure compression: Increased pressure at depth compresses sealing elements differently than at surface — marginal seals that hold at 1 bar may fail at 10+ bar.
  • Cable jacket compression: Flexible cable jackets compress under pressure, reducing the effective OD and loosening the seal grip.
  • Inadequate depth rating: Using a penetrator rated for shallower depths than the actual operating depth.

Solutions

  • Always select penetrators rated for at least 1.5× your maximum operating depth.
  • Conduct hydrostatic pressure testing at rated depth before deployment — not just surface leak checks.
  • For deep applications (>200m), use penetrators with mechanical compression sealing rather than O-ring-only designs.

FAQ 3: Why is the penetrator body corroding?

Symptoms

Visible corrosion, pitting, or galvanic attack on the penetrator body after seawater exposure.

Common Root Causes

  • Material incompatibility: Using aluminum penetrators in direct contact with stainless steel housings creates a galvanic couple in seawater.
  • Insufficient material grade: Standard 304 stainless steel is susceptible to crevice corrosion in high-salinity environments; 316L or titanium is required for long-term immersion.
  • Lack of sacrificial anodes: No cathodic protection on the system accelerates corrosion of less noble metals.

Solutions

  • Use 316L stainless steel or titanium penetrators for saltwater applications.
  • Avoid dissimilar metal contact — use isolation bushings or select matched materials.
  • Install sacrificial zinc anodes on the housing for long-term deployments.
  • Apply anti-corrosion coating or marine-grade grease to exposed threads after assembly.

FAQ 4: The cable is pulling out of the penetrator under tension — why?

Symptoms

Cable slips or pulls through the penetrator body when subjected to umbilical tension or ROV movement loads.

Common Root Causes

  • Relying solely on the seal for strain relief: Compression seals are designed for sealing, not load-bearing — cable tension must be managed separately.
  • Smooth cable jacket: Polyurethane or PE jackets have low friction coefficients and can slip under load.
  • Incorrect penetrator type: Some penetrators are seal-only; others include integrated strain relief — using the wrong type for the application.

Solutions

  • Always use a dedicated strain relief clamp or cable grip separate from the penetrator seal.
  • For umbilical applications, select penetrators with integrated mechanical strain relief features.
  • Route umbilicals with sufficient slack at the penetrator entry point to minimize direct tension transfer.

FAQ 5: How often should penetrators be inspected and replaced?

Recommended Maintenance Schedule

  • Before every deployment: Visual inspection of O-rings, sealing surfaces, and cable jacket condition.
  • Every 50 dive hours or 6 months: Full disassembly, O-ring replacement, and re-torque to specification.
  • Annually or after any leak event: Replace all sealing elements regardless of visual condition; inspect housing threads for wear or corrosion.
  • Immediately: Replace any penetrator that has experienced a leak event — do not re-seal and redeploy without full inspection.

Yingdige Penetrator Solutions

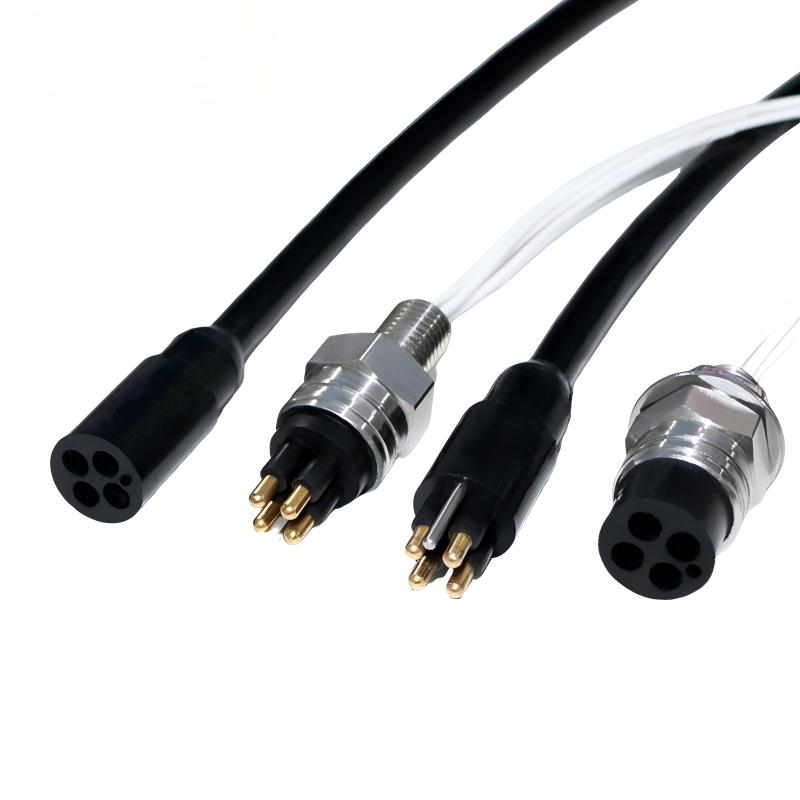

Yingdige supplies a full range of subsea cable penetrators and wet-mate connectors engineered for demanding marine environments — from nearshore aquaculture systems to deep-water ROV platforms. Our penetrators are available in 316L stainless steel and titanium, with depth ratings from 100m to 4000m and cable OD compatibility from 3mm to 25mm.

All units undergo factory hydrostatic pressure testing and salt spray corrosion testing before shipment.

Contact our engineering team for product selection support and custom penetrator specifications.
