2MP PTZ Underwater AHD Camera | Water Well Inspection & ROV | 100m Depth | 360° Pan | White Light | 316L SS | HS-XSX-02-A-W-SS
2MP PTZ Underwater AHD Camera | Water Well Inspection & ROV | 100m Depth | 360° Pan | White Light | 316L SS | HS-XSX-02-A-W-SS
Part of YingDiGe's Subsea & ROV Inspection Cameras series — compact underwater imaging systems engineered for ROV operations, marine research, and industrial subsea monitoring.

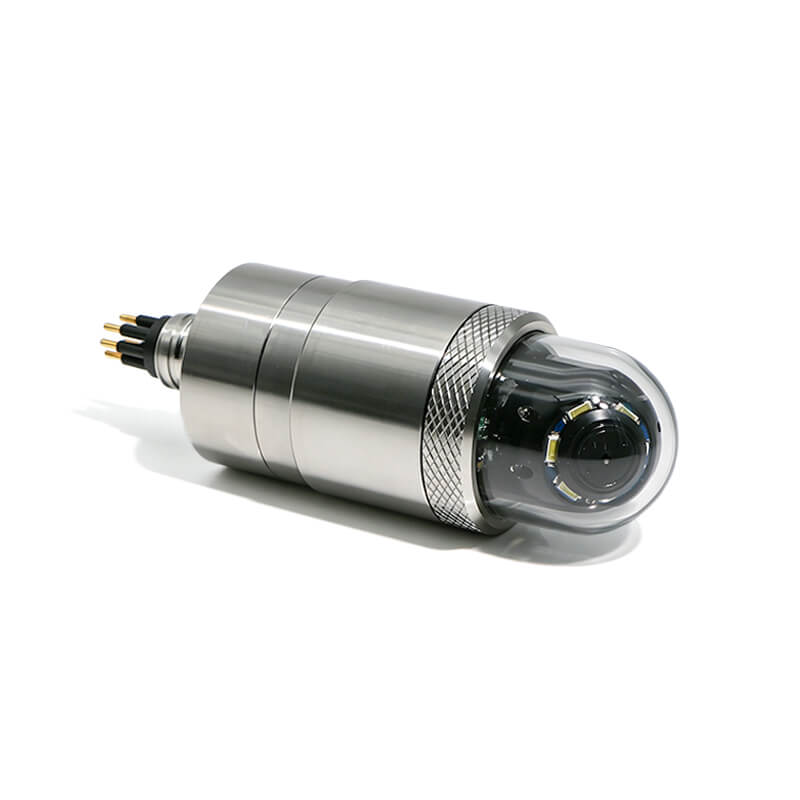

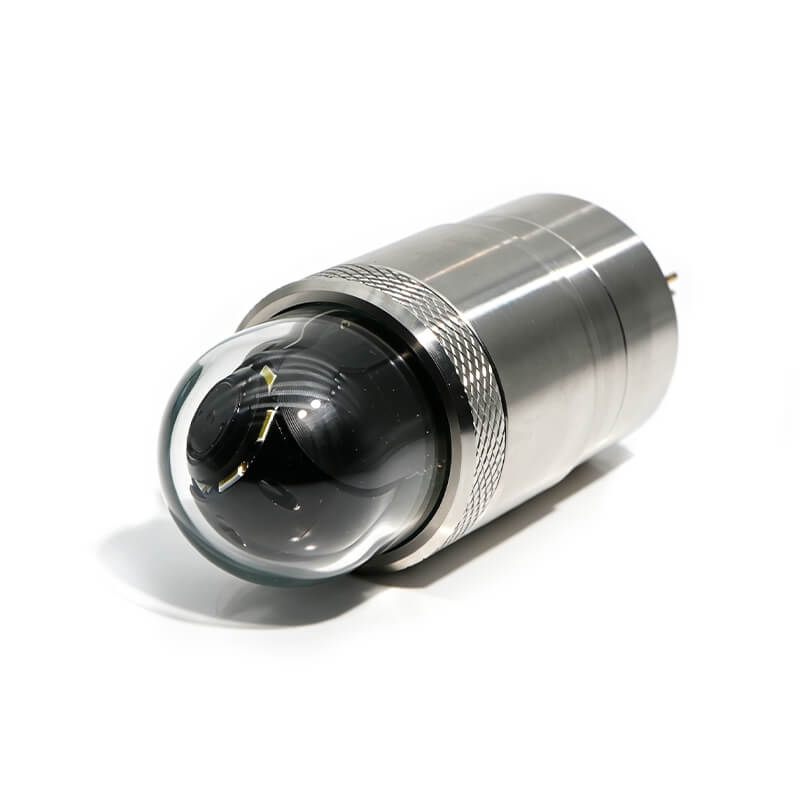

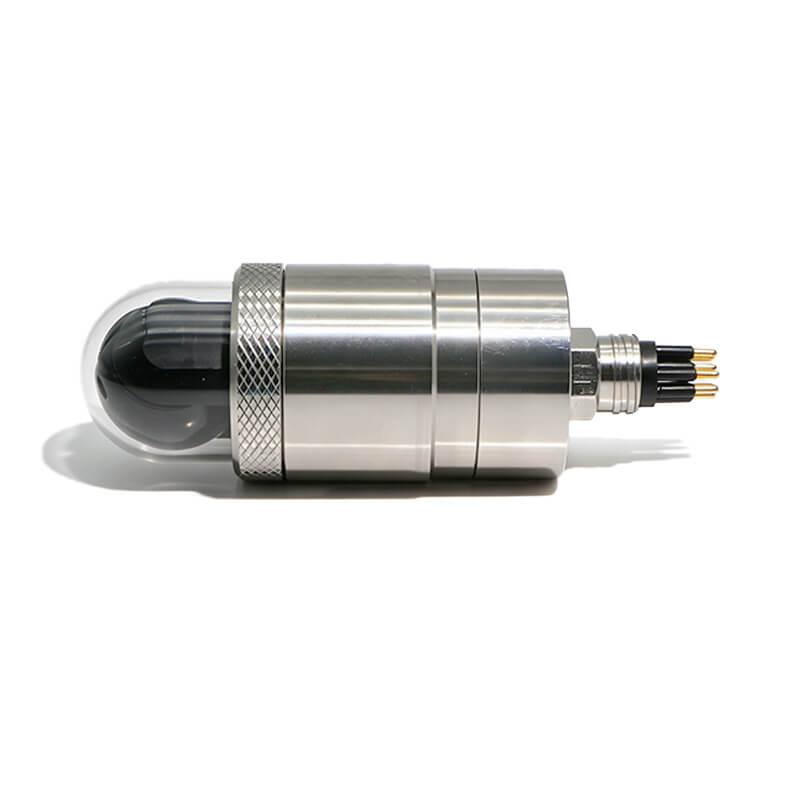

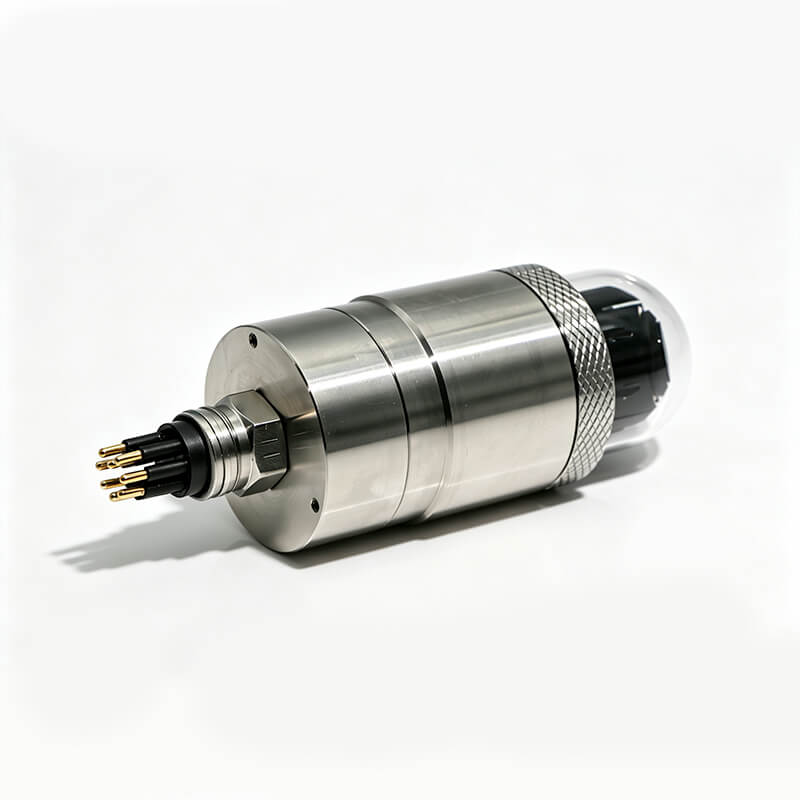

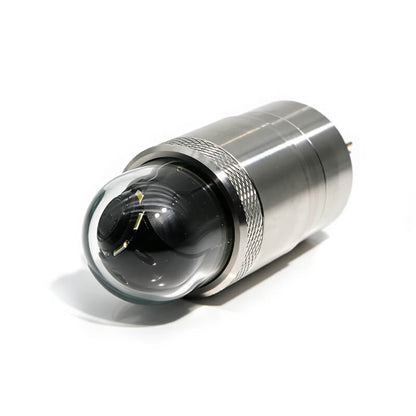

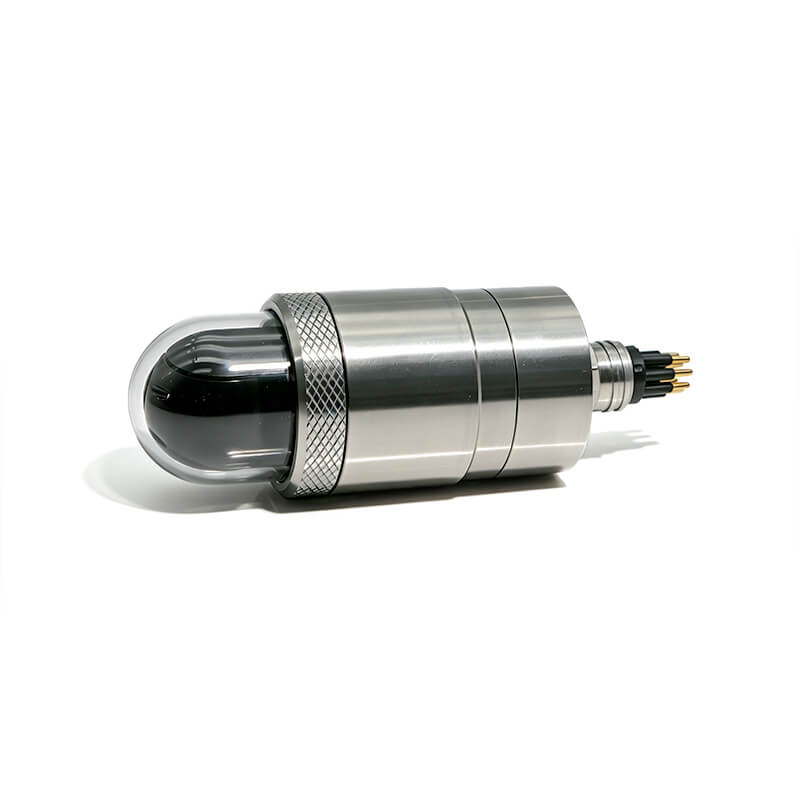

2MP Underwater AHD Camera — 100m Depth | White Light Illumination | 316L Stainless Steel | Model: HS-XSX-02-A-W-SS
This compact 2MP AHD underwater camera is designed for reliable shallow-to-mid depth inspection and monitoring applications. Featuring a 316L stainless steel fully sealed housing with fluorine rubber O-ring sealing, integrated white light illumination, and AHD 1080P output, it delivers clear underwater imagery at depths up to 100m in a compact Φ50mm × 110mm form factor.
Core Advantages
- 2MP 1080P AHD Output – 1080P@25fps / 1080C@30fps; compatible with standard AHD DVR/NVR systems

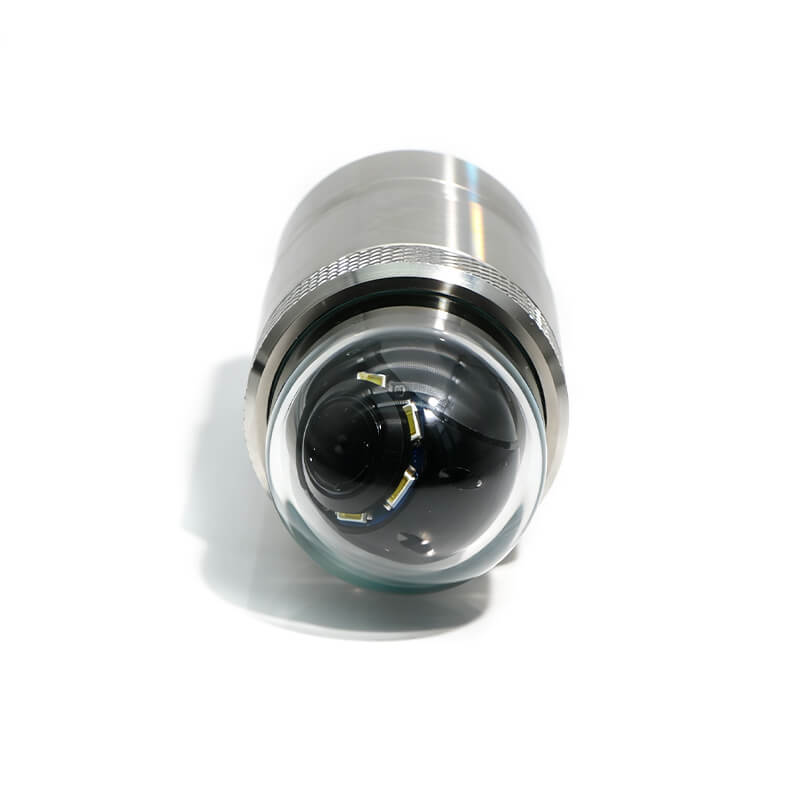

- Integrated White Light Illumination – Manual white light supplement; 3W (no light) / 4.2W (with light); no separate fixture required
- 100m Depth Rating – Fluorine rubber O-ring sealed housing for reliable subsea deployment
- 316L Stainless Steel Housing – Seawater-grade corrosion resistance; metal contact heat dissipation

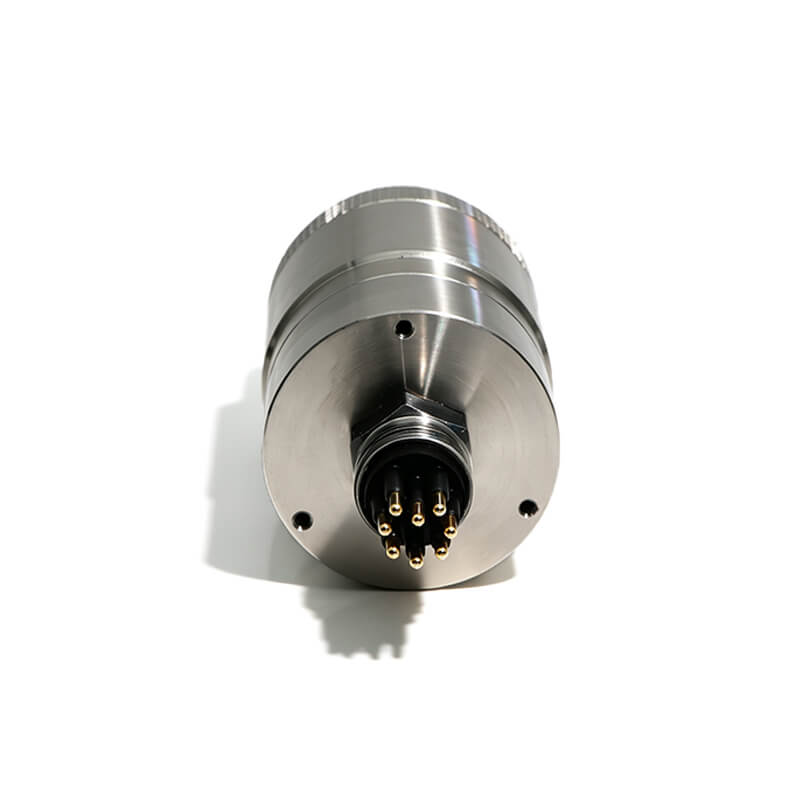

- Compact Form Factor – Φ50mm × 110mm; easy ROV payload integration with 8-pin aviation connector
- Low Power Consumption – DC5V, 3W–4.2W; suitable for battery-powered ROV systems
Technical Specifications
| Parameter | Value |
|---|---|
| Model | HS-XSX-02-A-W-SS |
| Sensor | 1/2.9" GC2053 + FH8536H |
| Resolution | 2MP (1080P) |
| Video Output | AHD — 1080P@25fps / 1080C@30fps |
| Lens Angle | 90° |
| Illumination | White light (manual), integrated |
| Power Supply | DC5V |
| Power Consumption | 3W (no light) / 4.2W (with light) |
| Depth Rating | 100m |
| Sealing | Fluorine rubber O-ring |
| Heat Dissipation | Metal contact |
| Housing Material | 316L stainless steel |
| Lens Material | Tempered glass |
| Connector | 8-pin aviation connector (cable optional) |
| Dimensions | Φ50mm × 110mm |
| Country of Origin | China |
ROV & Subsea Inspection Applications
- ROV payload camera for 100m-class underwater operations
- Subsea pipeline and cable inspection
- Aquaculture and fish farm underwater monitoring
- Marine engineering and offshore structure surveillance
- Underwater scientific research and observation
Customization Available
Depth rating, illumination type, cable length, and lens angle are customizable. OEM service available for subsea camera system integrators.
Compliance: Products are manufactured in compliance with RoHS and REACH directives. CE documentation available upon request.
