YingDiGe 3-pin subsea micro circular connectors provide a compact watertight electrical connection for ROVs, oceanographic instruments, underwater cameras, lighting systems, and other space-constrained marine equipment. MCBH3 bulkhead and MCIL3 inline configurations are designed for mating with corresponding SubConn® Micro Circular interfaces; confirm the exact model and mounting dimensions before replacement.
Built for immersion, salt spray, and high-pressure marine environments, the series combines corrosion-resistant shell options, gold-plated contacts, and flexible cable configurations. Choose a matched male/female pair or an individual connector for bulkhead-to-cable or cable-to-cable installations.
Why Engineers Choose This Series
- Compact 3-pin MCBH3 and MCIL3 male and female configurations
- Designed for mating with corresponding SubConn® Micro Circular systems
- 300 V AC/DC RMS and 10 A rated current per contact
- 800 bar / 11,600 psi pressure test for standard versions; confirm the operating depth for the selected assembly
- Custom cable length, PUR overmolding, shell material, mounting thread, and pressure-test options
- Technical support for specification and mating-compatibility confirmation
Available Configurations

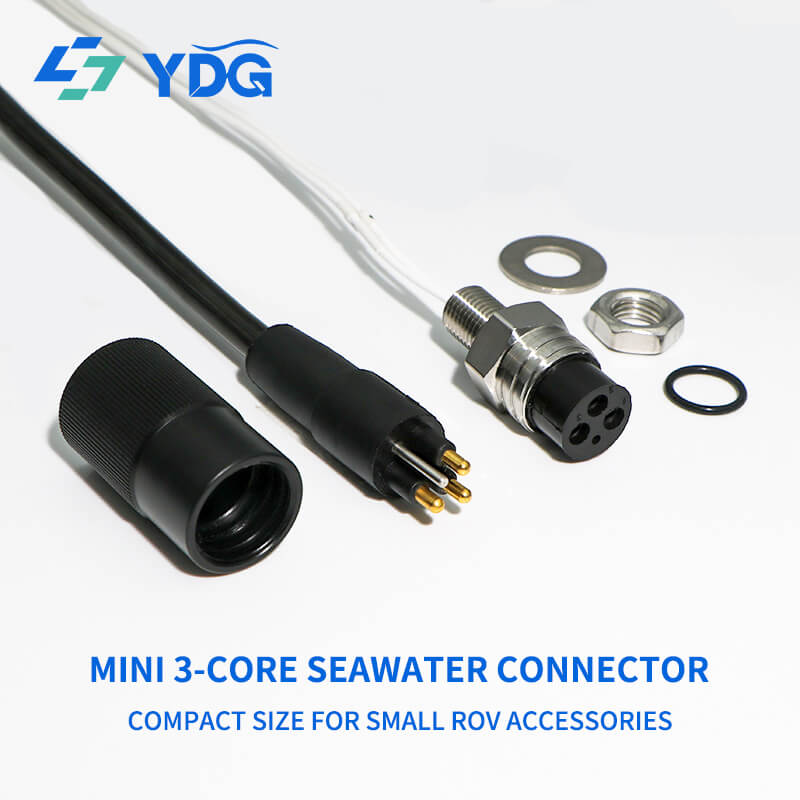

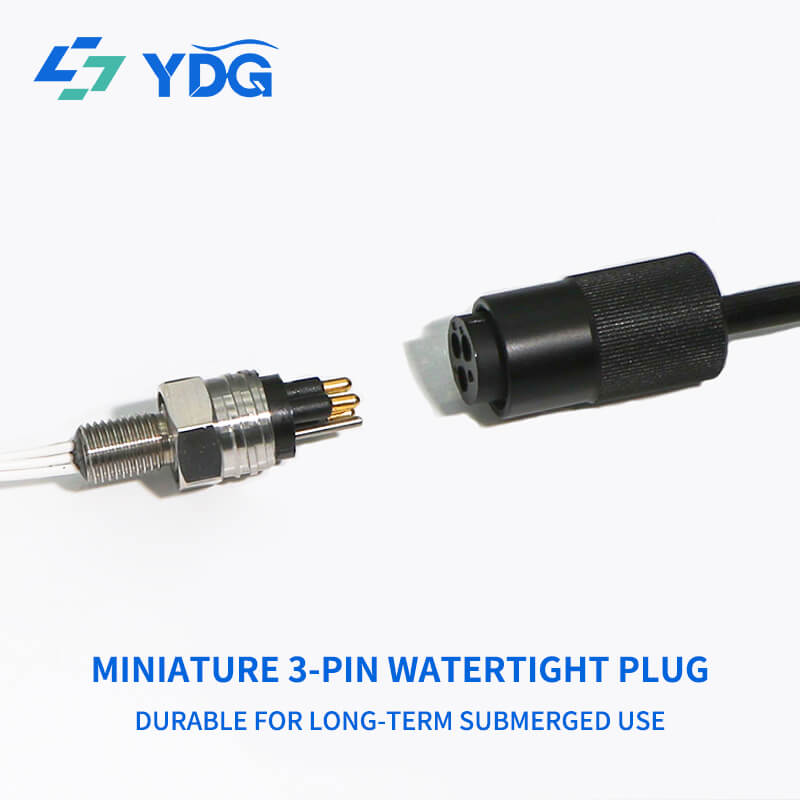

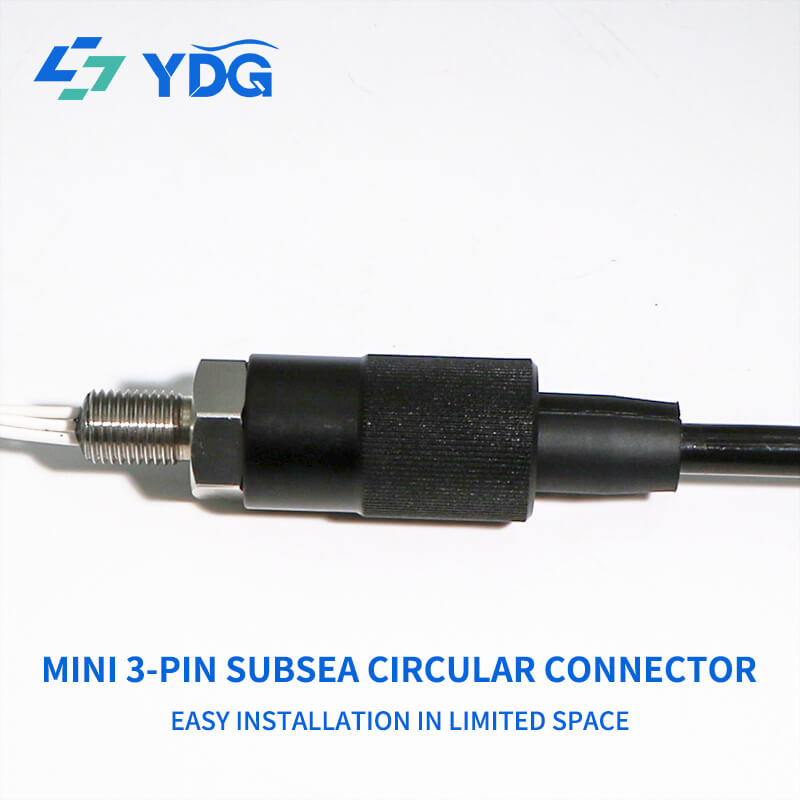

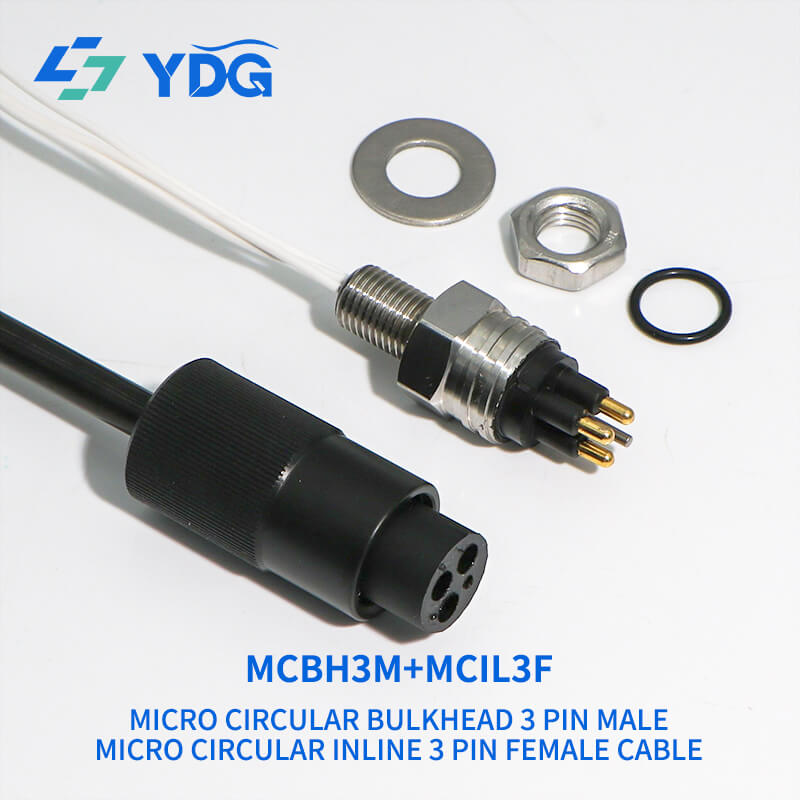

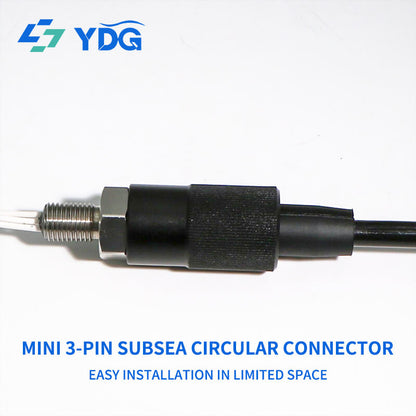

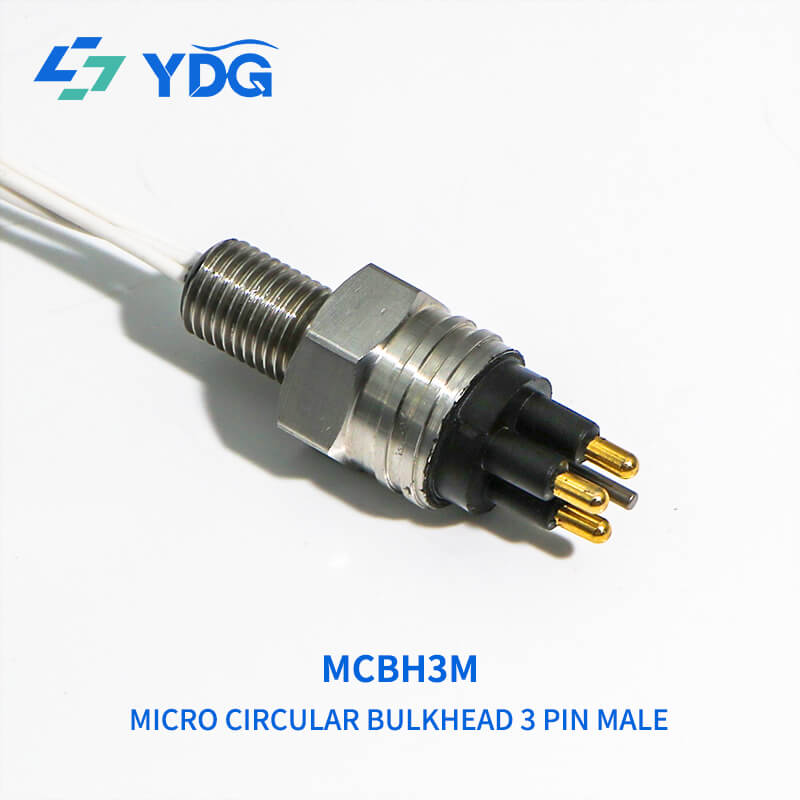

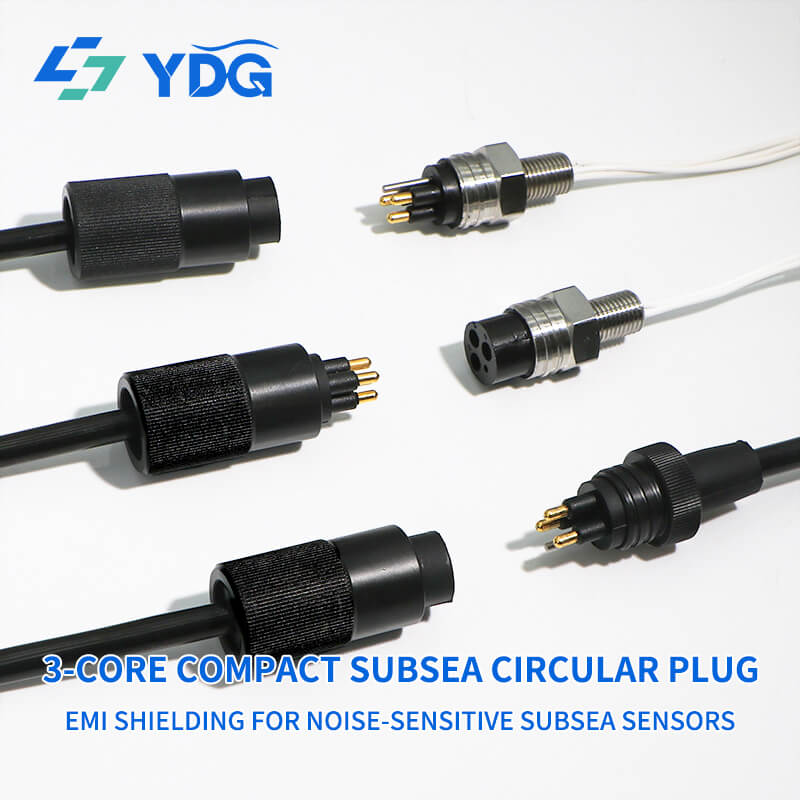

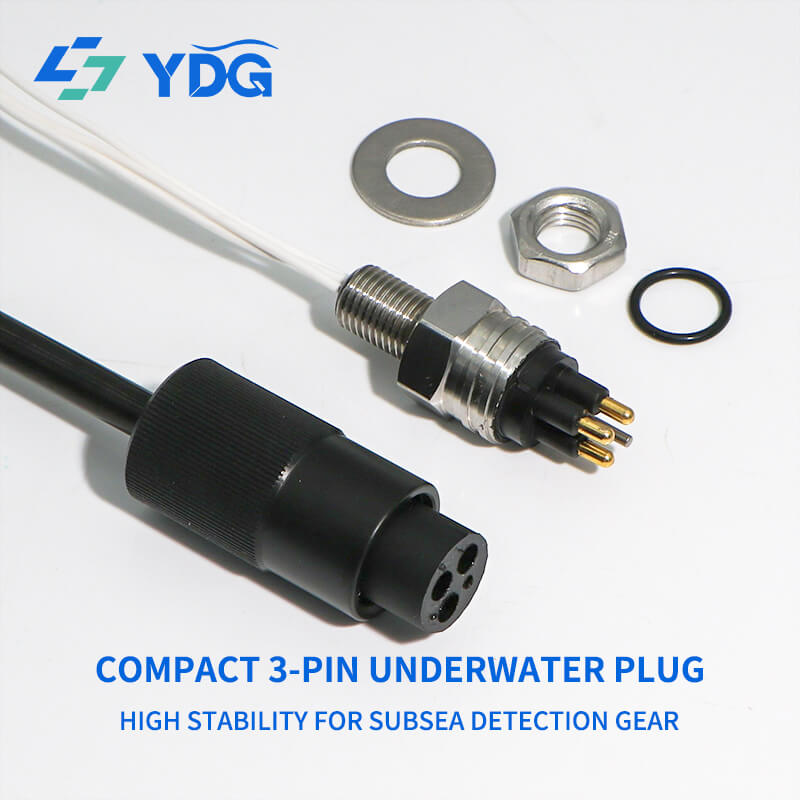

- MCBH3M male bulkhead connector

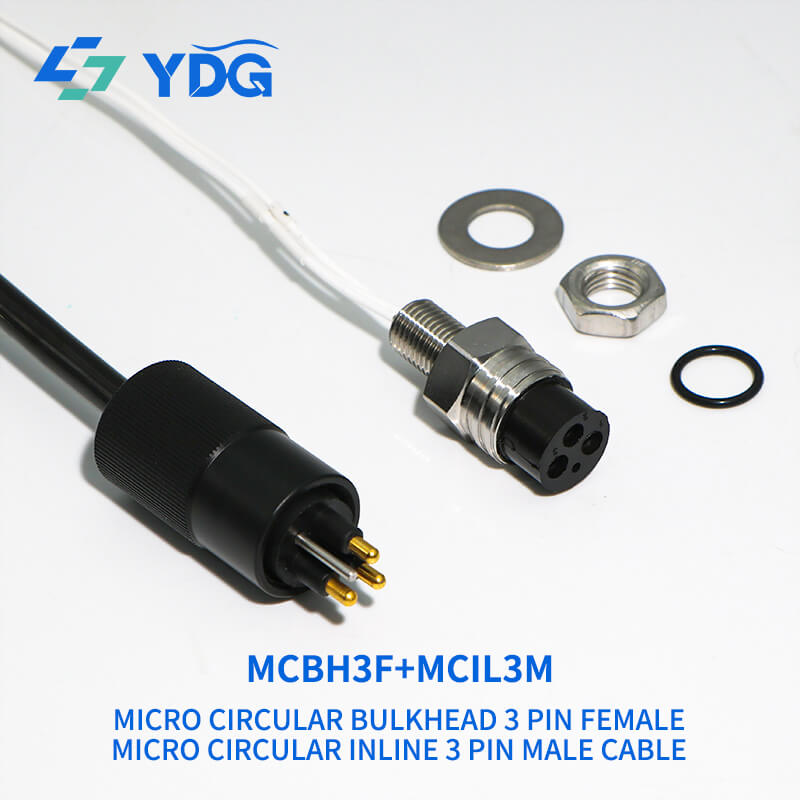

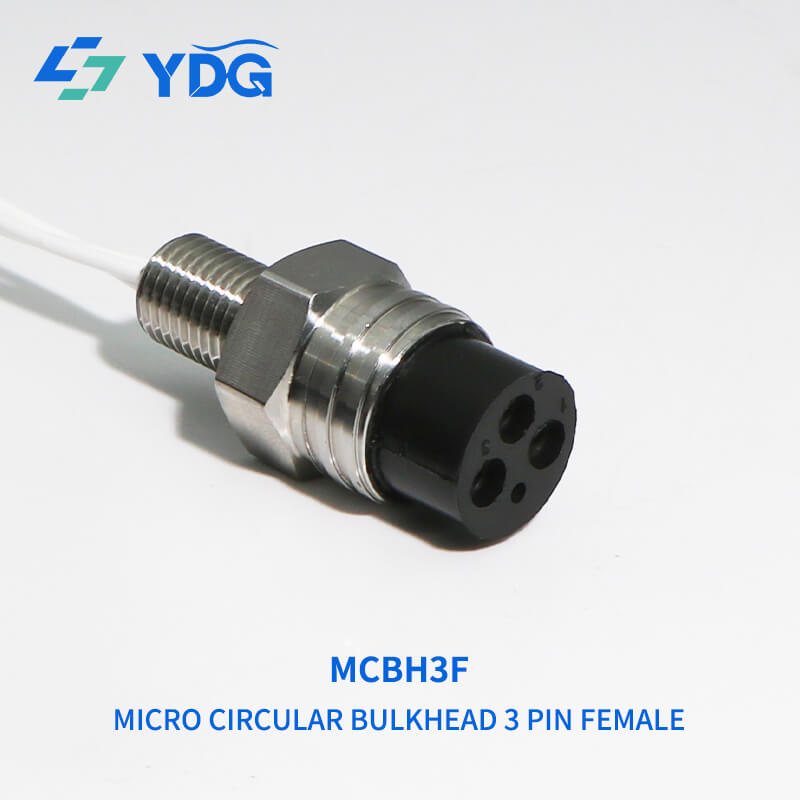

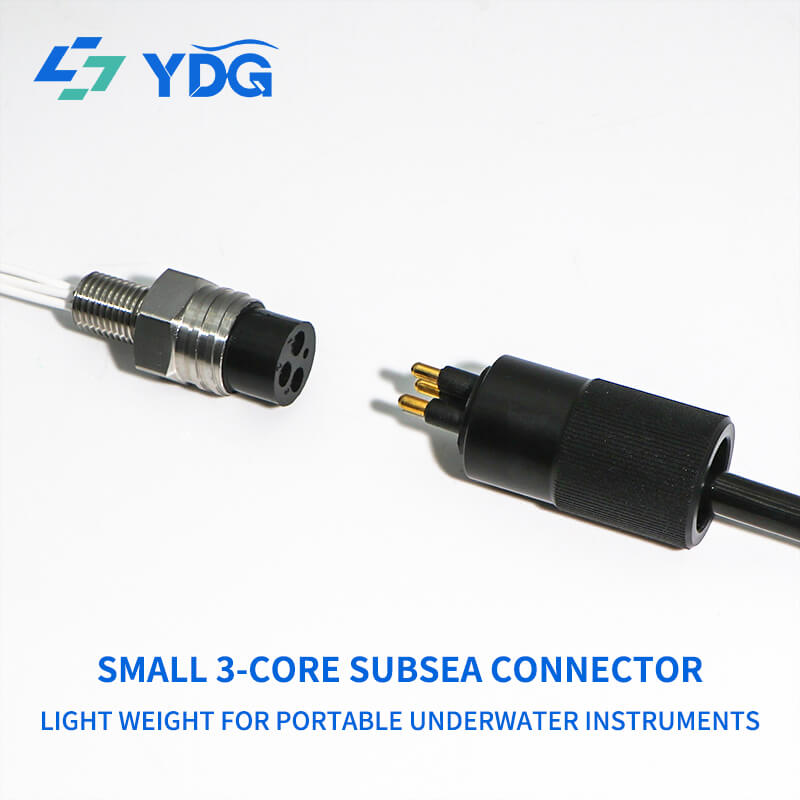

- MCBH3F female bulkhead connector

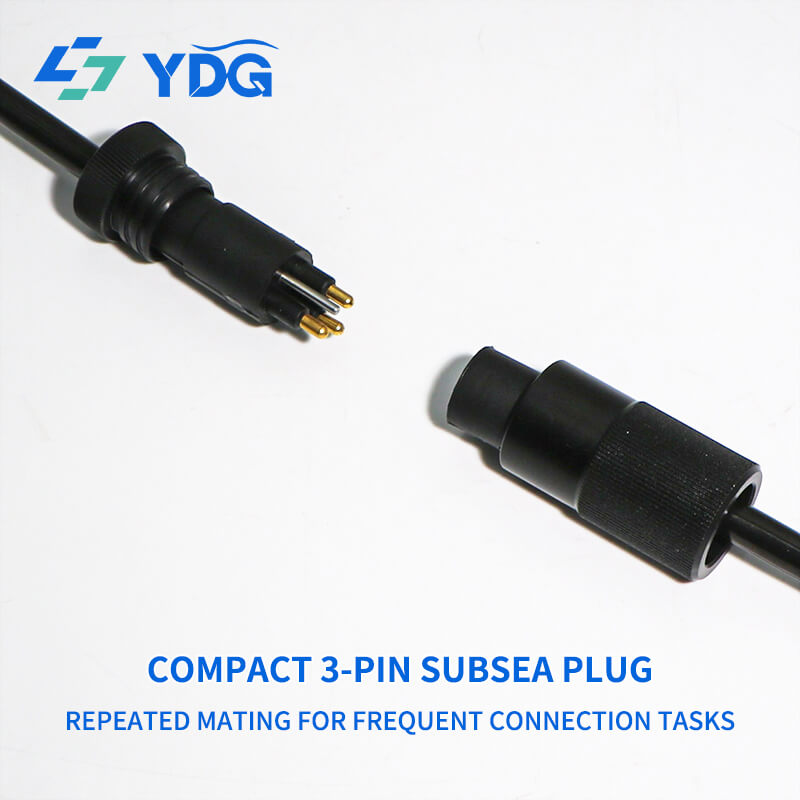

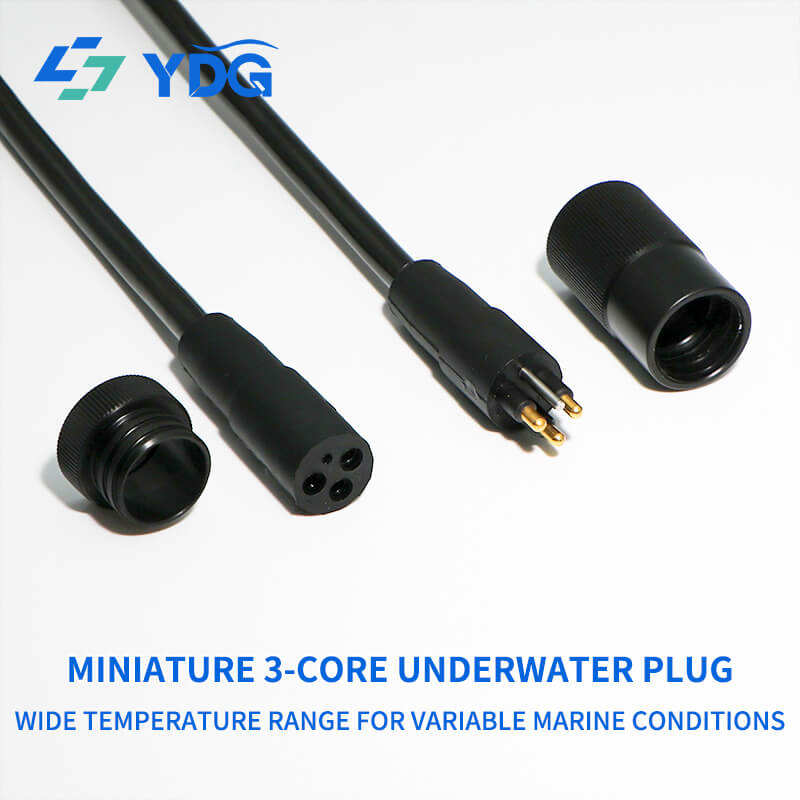

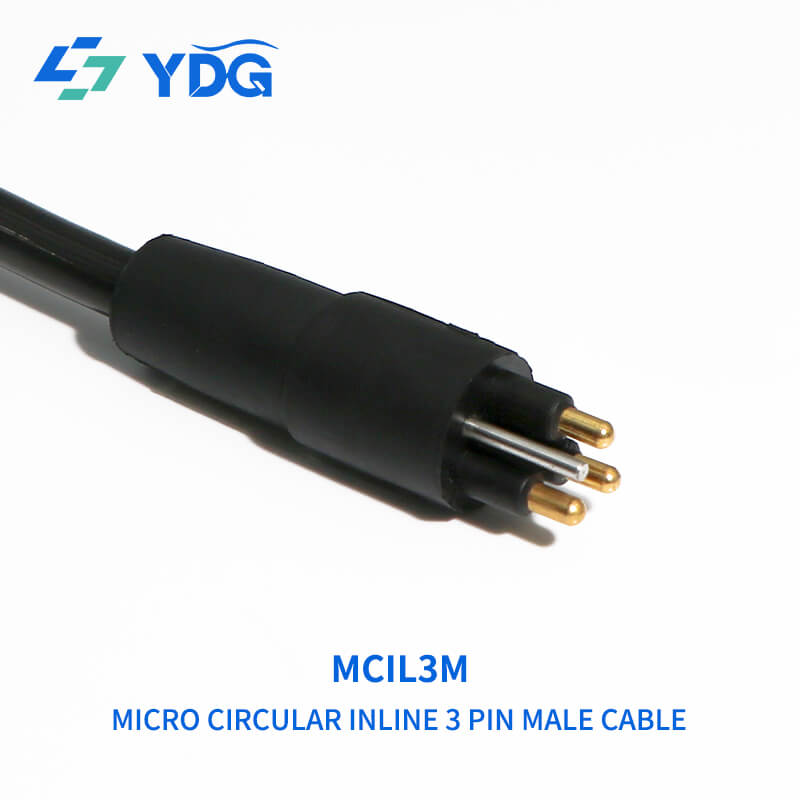

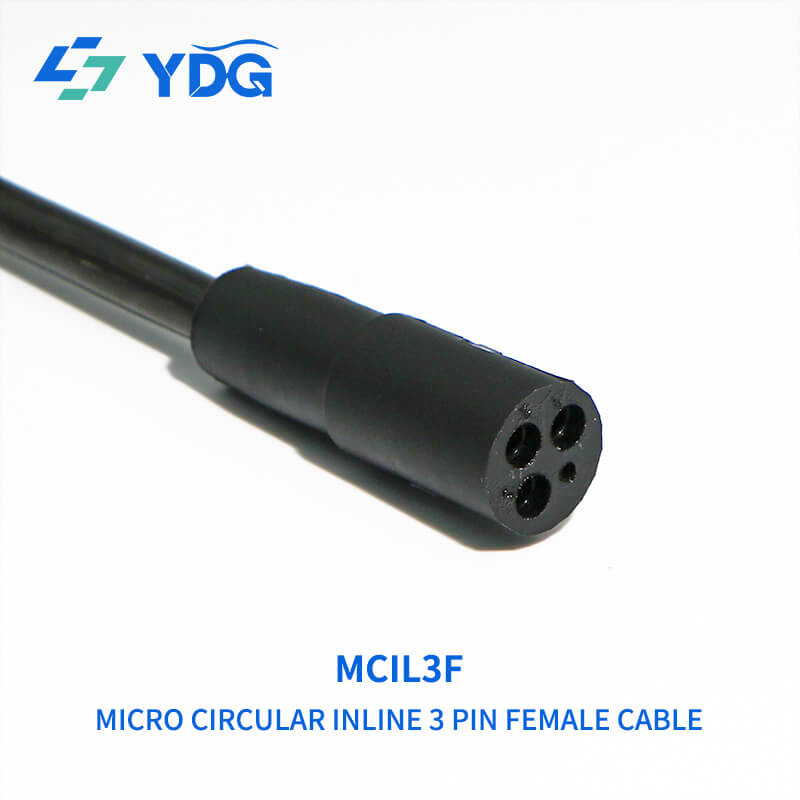

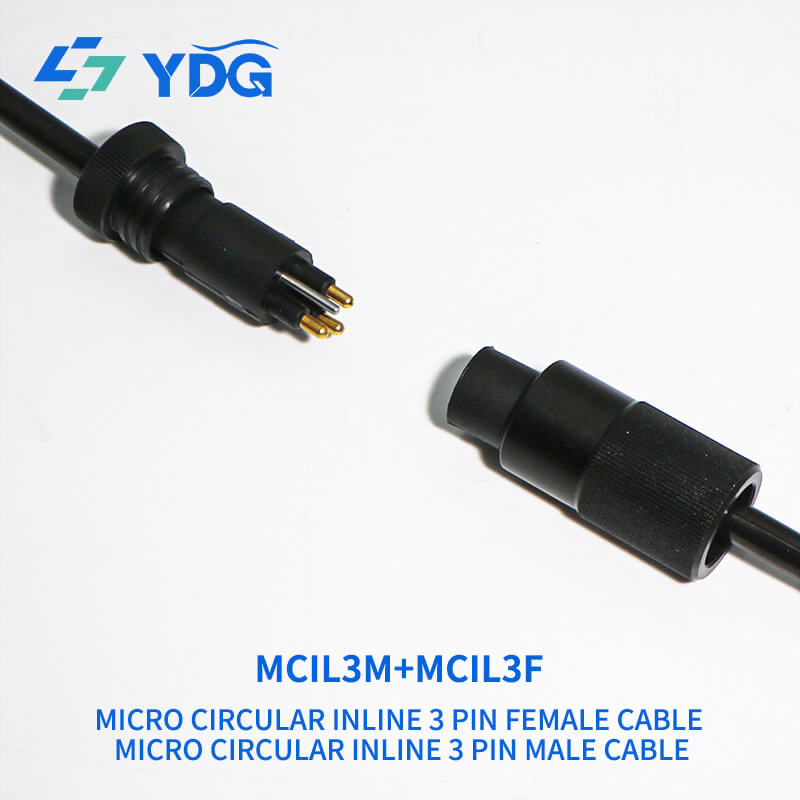

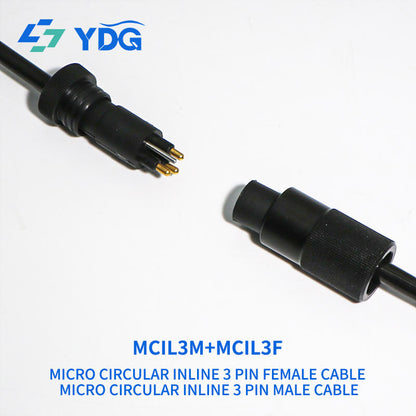

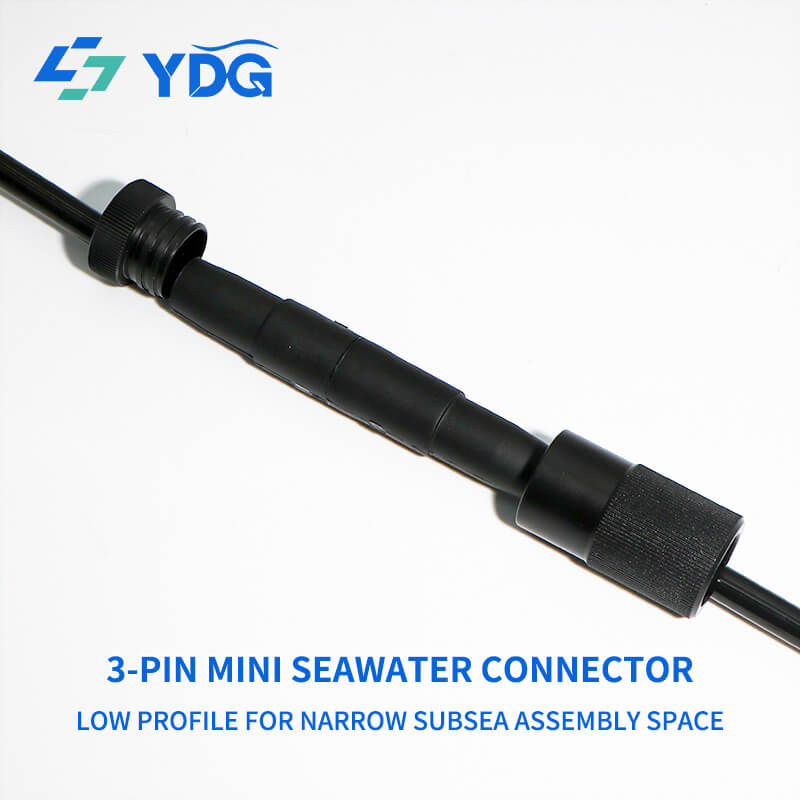

- MCIL3M male inline cable connector
- MCIL3F female inline cable connector
- Matched bulkhead-to-cable and cable-to-cable sets
- Right-angle connectors and pressure-resistant blanking connectors: ask for model availability
Typical Applications
- ROV and remotely operated towed vehicle systems
- Ocean-observation and marine monitoring instruments
- Underwater cameras, video, and LED lighting
- Offshore energy and subsea equipment
- Seabed seismic monitoring and inspection systems
- Diving equipment and pressure housings
Technical Specifications
| Item | Specification |
|---|---|
| Contact count | 3 pins |
| Contact diameter | 2.8 mm |
| Rated voltage | 300 V AC/DC RMS |
| Rated current | 10 A per contact (20 A maximum stated for the series; confirm for the selected assembly) |
| Insulation resistance | >200 MΩ |
| Contact resistance | <0.01 Ω |
| Wet-mating cycles | >500 cycles with mating faces submerged |
| Operating temperature in water | −4 to 60°C (25 to 140°F) |
| Operating temperature in air | −40 to 60°C (−40 to 140°F) |
| Storage temperature | −40 to 60°C (−40 to 140°F) |
| Pressure test | 800 bar / 11,600 psi (standard version) |
| PEEK version pressure rating | 300 bar / 4,350 psi |
| Thread size | 7/16-20 UNF-2A |
Materials
| Component | Material |
|---|---|
| Connector body | Neoprene / polyether-based TPU |
| Bulkhead shell | Brass, stainless steel, titanium alloy, anodized aluminum, or PEEK |
| PEEK bulkhead shell | PEEK-30 |
| Contacts | Gold-plated copper |
| Alignment pin | AISI 316 stainless steel |
| O-ring | Nitrile rubber |
| Locking sleeve | POM, titanium alloy, or stainless steel |
| Retaining ring | AISI 316 stainless steel |
Cable and Lead Options
- 3-pin inline cable: 18 AWG, 0.81 mm², synthetic-rubber jacket
- 3-pin bulkhead or PBOF leads: 18 AWG, 0.81 mm², white PTFE
- Standard inline cable length: 3.3 ft / 1.02 m
- Standard bulkhead lead length: 1 ft / 30 cm
- Nominal 3-pin cable outside diameter: 0.295 in / 7.5 mm (±0.5 mm)
- Standard conductor colors: Pin 1 red, Pin 2 black, Pin 3 yellow
- Customer-specified cable and direct PUR overmolding available
Customization and Technical Quote
Send us the connector configuration, cable length, shell material, mounting thread, and target operating depth. YingDiGe can check mating compatibility and quote custom cable assemblies, PUR overmolding, and pressure-testing options for your project.
