Underwater Camera SDI coaxial camera

SDI Coaxial Underwater Camera — AHD/TVI/CVI | AI Deep Learning | 120dB WDR

The YingDiGe SDI coaxial underwater camera combines professional-grade coaxial HD transmission with advanced AI deep learning capabilities. Supporting AHD/TVI/CVI output formats and featuring 120dB wide dynamic range, it delivers exceptional image quality and intelligent detection in the most demanding subsea environments.

🔧 Technical Specifications

• Output Format: AHD / TVI / CVI coaxial high-definition
• Min. Illumination: 0.01 Lux @ (F1.2, AGC ON) / 0 Lux with IR
• IR Night Vision: ICR infrared filter automatic switching
• Wide Dynamic Range: 120dB
• Video Compression: H.265 (significantly reduced bitrate)
• Noise Reduction: 3D-DNR
• AI Features: Deep learning face capture (up to 5 faces simultaneously), area intrusion detection, boundary violation detection, enter/leave area detection, vehicle & pedestrian classification
• Control: OSD menu / Coaxial UTC control
• Lightning Protection: 6KV video surge protection, large capacitor power design
• Interfaces: Rich interface support — compatible with NVR, dome cameras, pan-tilt units, and mainstream platforms
• Housing Material: POM / Aluminum / 316L Stainless Steel (customer selectable)
• Customization: OEM available — housing, cable length, lens angle

🌊 Application Scenarios

• Offshore Security: AI-powered intrusion detection and perimeter monitoring around offshore platforms and subsea infrastructure
• Port & Harbor Surveillance: Intelligent underwater monitoring at docks with vehicle and pedestrian classification
• ROV Integration: High-definition coaxial output for real-time ROV video transmission over long cable runs
• Aquaculture: 24/7 day and night monitoring of fish farms with automatic IR switching
• Industrial Inspection: Subsea pipeline and equipment inspection with AI-assisted anomaly detection
• Dam & Reservoir Monitoring: Long-term structural surveillance with 120dB WDR for high-contrast environments

✅ Key Advantages

• AI deep learning enables intelligent detection without additional processing hardware
• 120dB WDR handles extreme contrast between bright and dark underwater zones
• H.265 compression reduces storage and bandwidth by up to 50% vs H.264
• 0 Lux IR capability for complete darkness imaging
• 6KV lightning protection for reliable marine environment operation
• Rich interface compatibility for seamless integration with existing systems

📦 Service & Support

• 1-year warranty with lifetime technical support
• Complete documentation, SDK, and installation drawings provided
• OEM logo, custom cable length, and lens configuration available

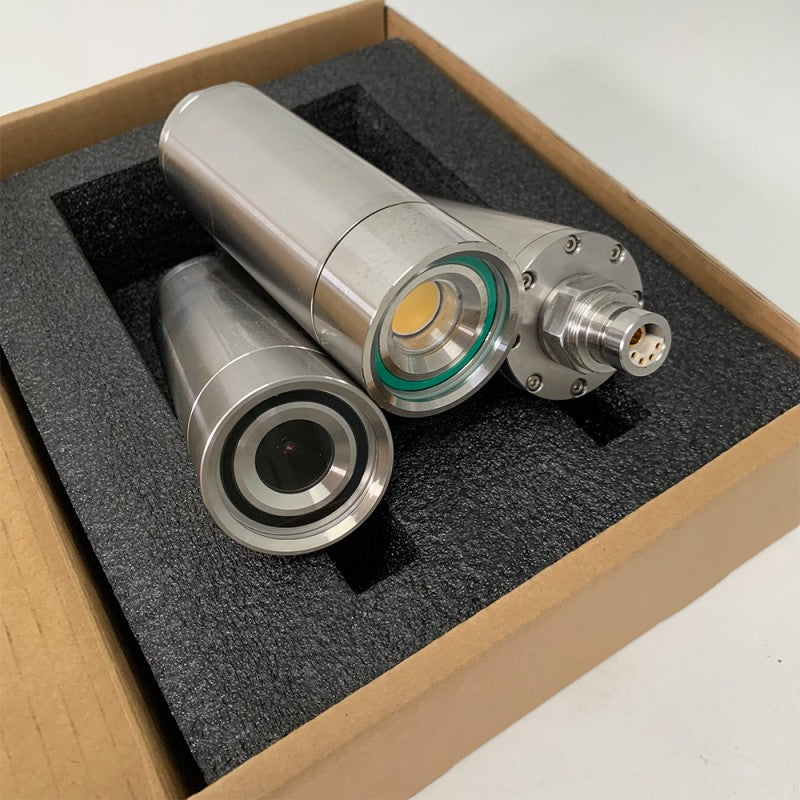

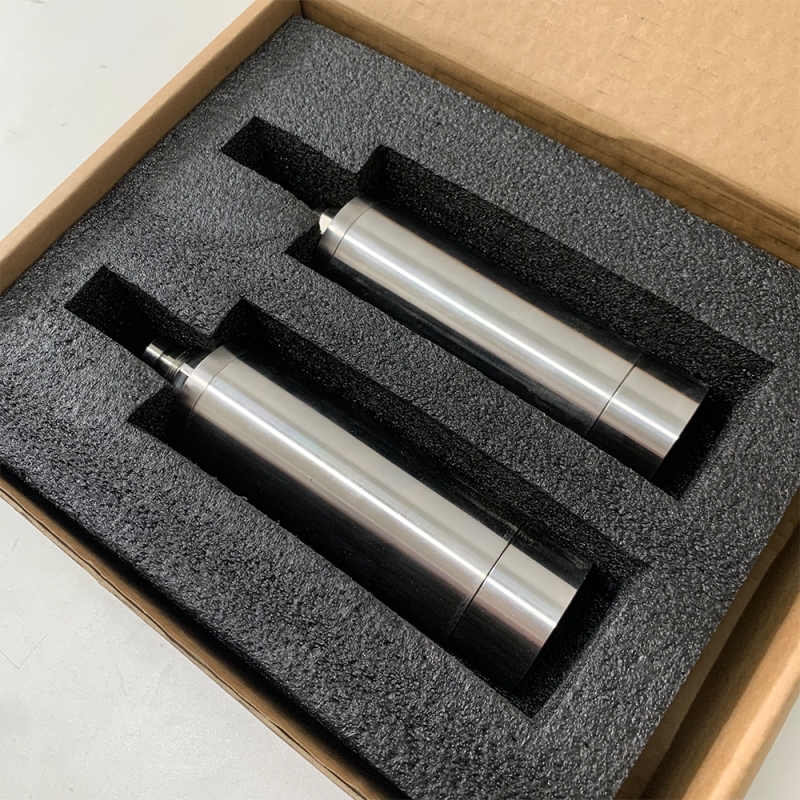

• Professional seaworthy packaging for international shipping
